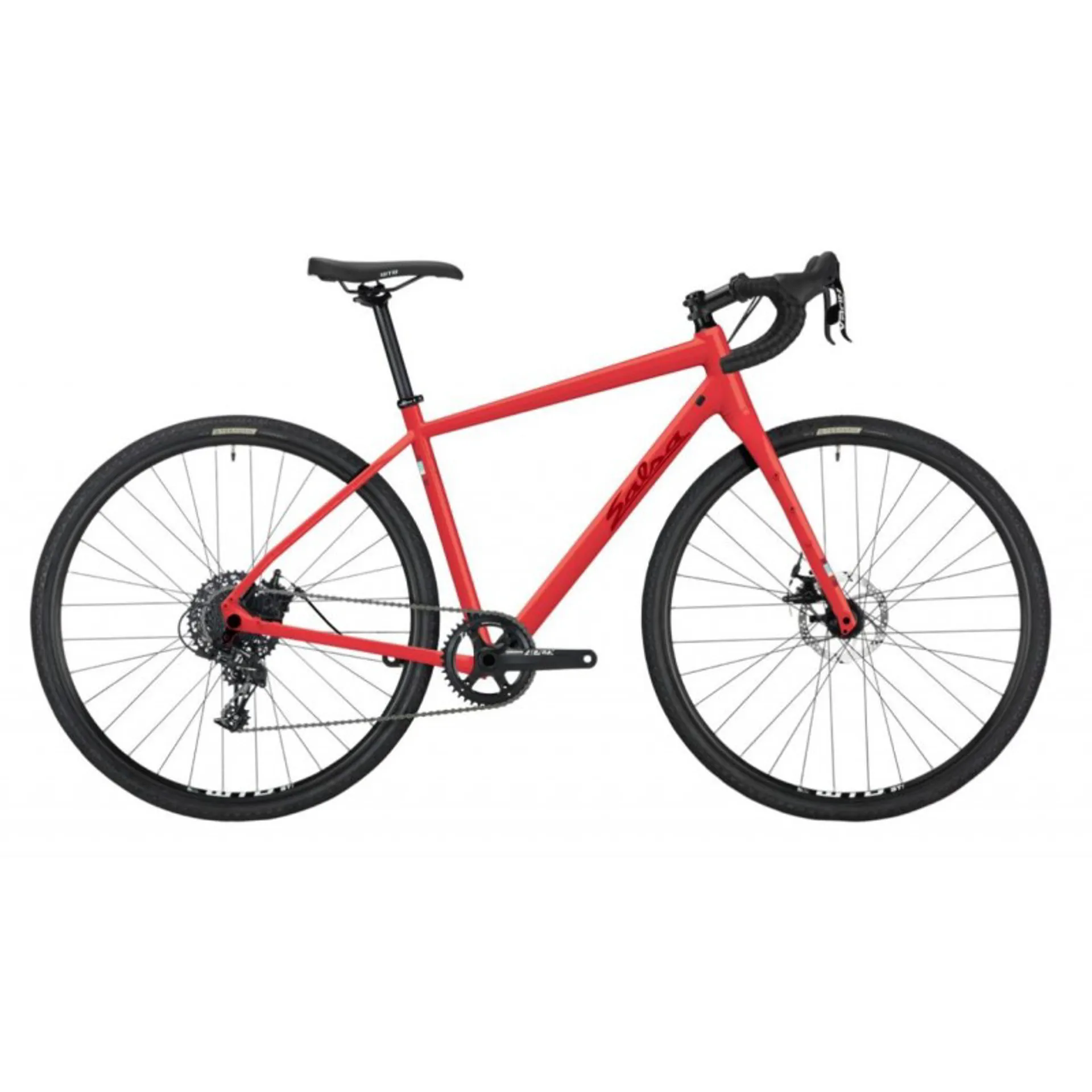

Salsa Journeyer Apex 1 700C Gravel Bike
Salsa Journeyer Apex 1 700C Gravel Bike
Salsa

Salsa Journeyer Apex 1 700C

£1,699.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Salsa Journeyer Apex 1 700C

Brand:Salsa

Code:BK943

Journeyer is our all-road bike designed with the versatility to fulfill a wide variety of missions. Journeyman Apex 1 700 has 700c wheels for more speed and efficiency when you’re primarily riding on roads. Its aluminum frame, carbon Fantail Deluxe fork, and SRAM Apex 1 drivetrain all reduce weight, giving you more energy to get out and wander.
Technical Information
BUILD KIT
FRAMESET
Frame
Journeyman Drop Bar
Fork
Fantail Deluxe Carbon Fork with Three-Pack Mounts
Color
Black
Rear Shock
N/A
DRIVETRAIN
Front Der
N/A
Rear Der
SRAM Apex 1
Cassette
SRAM PG1130 11-42
Chain
SRAM PC1110
Crankset
SRAM Apex 1 XSync 40t
Shifter
SRAM Apex 1
Brakes & Rotors
TRP Spyre-C flat mount, 160mm rotors
COMPONENTS
Headset
FSA Sealed Bearing
Stem
Salsa Guide
Handlebar
Salsa Cowbell
Grips
Salsa Gel Cork Bar Tape
Seatpost
Salsa Guide 27.2 x 350mm
Saddle
WTB Volt
WHEELS
Front Wheel
Novatec, 32h, 100mm, WTB ST i19 TCS 2.0 700c, 2.0mm spokes, brass nipples
Rear Wheel
Novatec, 32h, 135mm, WTB ST i19 TCS 2.0 700c, 2.0mm spokes, brass nipples
Tires
Teravail Cannonball 700c x 38mmWire Bead NOT TUBELESS COMPATIBLE
WEIGHT
Complete Bike Weight
24 lb for size 54cm
FRAME SPECS
Tire Size Range for 622/700c/29" Wheels
32–51mm (1.26–2.0")
Tire Size Range for 584/650b/27.5" Wheels
47–57mm (1.85–2.2")
Tire Size Range for 559/26" Wheels
559/26" is Not Compatible
Maximum Wheel/Tire Diameter
727mm (28.6")
Minimum Wheel/Tire Diameter
684mm (26.9")
Rigid Fork Length
405mm
Fork Offset
50mm
Headset-Upper
IS41
Headset-Lower
IS47
Seatpost
27.2mm
Seat Collar
32.0mm
Front Derailleur Mount
34.9mm OD, bottom pul
Bottom Bracket
68mm BSA
Crankset (Max Ring)
1x crankset: 46t max, 2x crankset: 52/36t max, 3x crankset: 53/39/30t max
Rear Brake (Rotor)
Flat mount (140–160mm)
Rear Spacing
135mm
Rear Axle Size
10 x 135mm, QR
Derailleur Hanger
959 hanger
BB Cable Guide
06-000682
Fender Mounts
Yes
Rack Mounts
Yes
Stem Clamp
28.6mm
Crown Race
33mm
Front Brake (Rotor)
140–160mm
Front Spacing
100mm
Sizing Information
GEOMETRY
frame
Size50cm52cm54cm55.5cm57cm59.5cm
A. Effective Top Tube500520540555570595
B. Stand Over666720742778801823
C. Reach364364367373379394
D. Stack528544567595624639
E. Total Seat Tube Length380450470510530560
F. Headtube Length100115140170200215
G. Headtube Angle7070.570.570.570.570.5
H. Seat Tube Angle75.57473737372.5
I. BB Drop727272727272
K. Chainstay Length440440440440440440
L. Fork Length Axle to Crown405405405405405405
M. Fork Offset505050505050
N. Wheelbase101710181029104510611081
Crank Arm Length165165170172.5175175
Handlebar Width38cm40cm42cm42cm44cm46cm
Recommended Rider Height152cm–160cm157cm–165cm165cm–175cm173cm–183cm180cm–190cm188cm–UP
Stem Length6070808090100

Measurements based on:

  • A fork which is 405 x 50mm offset
  • Measurements listed are based on a 700 x 38mm tire measuring 706mm in diameter
  • Standover (P) for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center
