Engineered for elite gravel racing, the Graff Aero 48 wheelset blends aerodynamic finesse with rugged reliability.
Engineered for elite gravel racing, the Graff Aero 48 wheelset blends aerodynamic finesse with rugged reliability.
Miche

Miche Graff Aero 48 Disc Wheelset in Black

£1,099.99
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

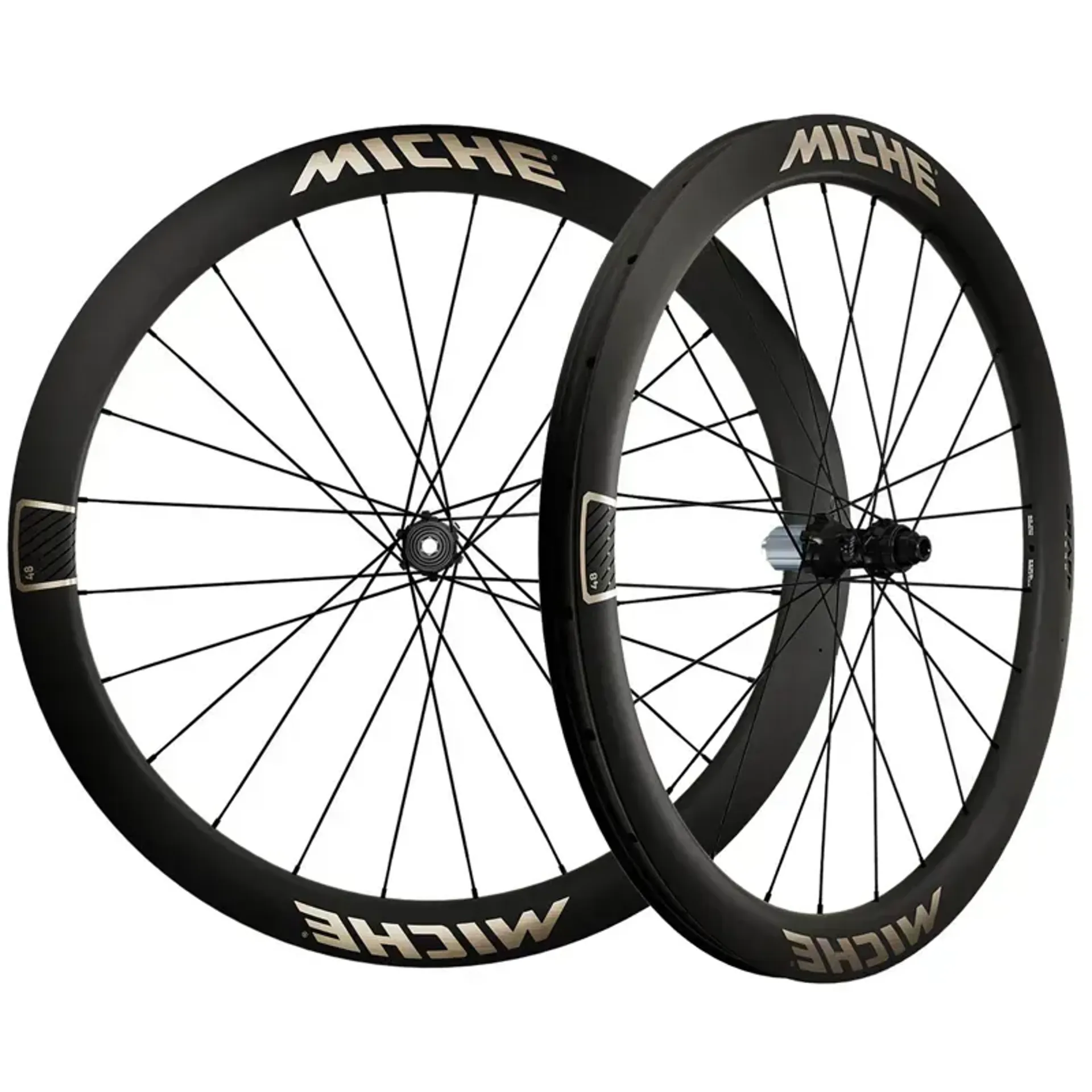

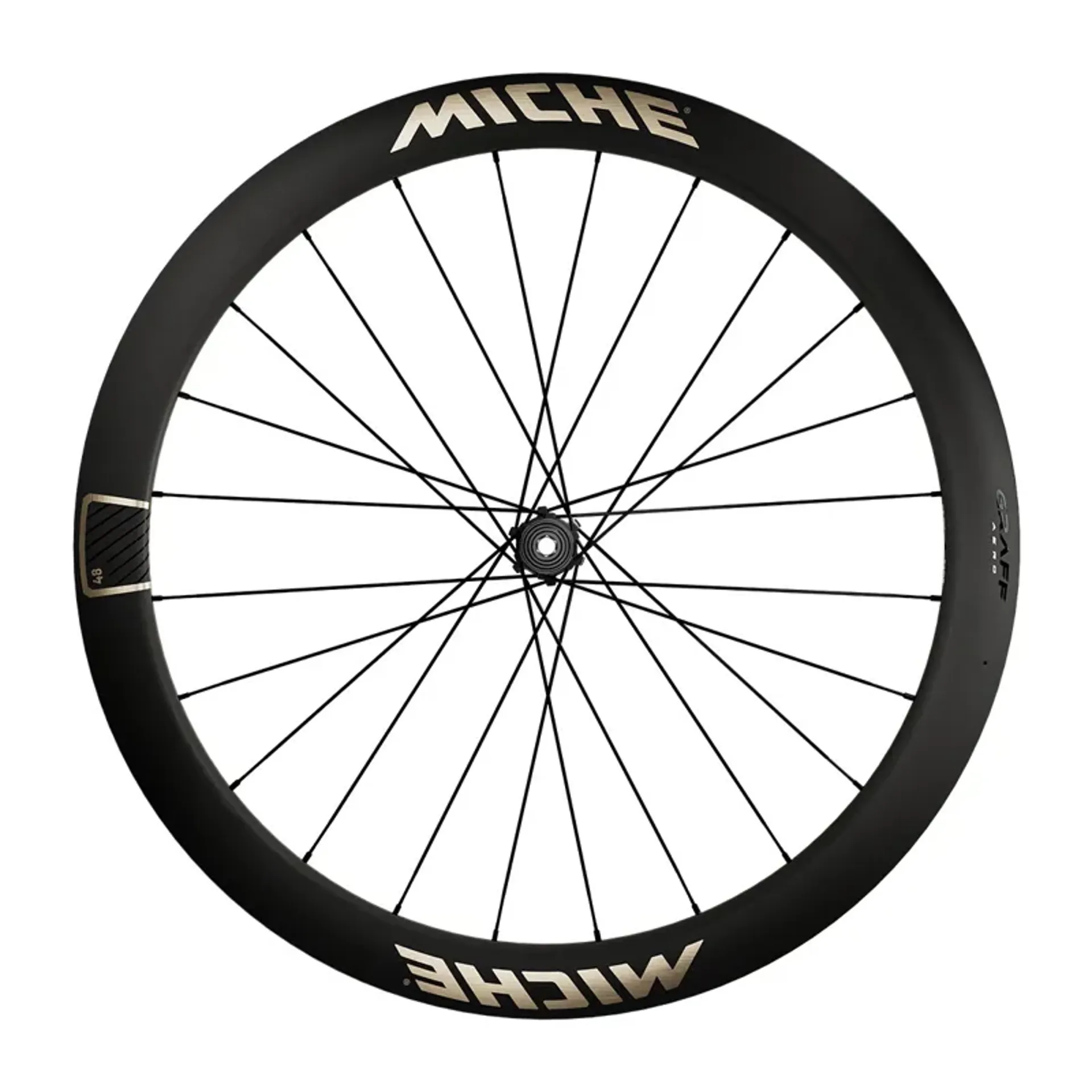

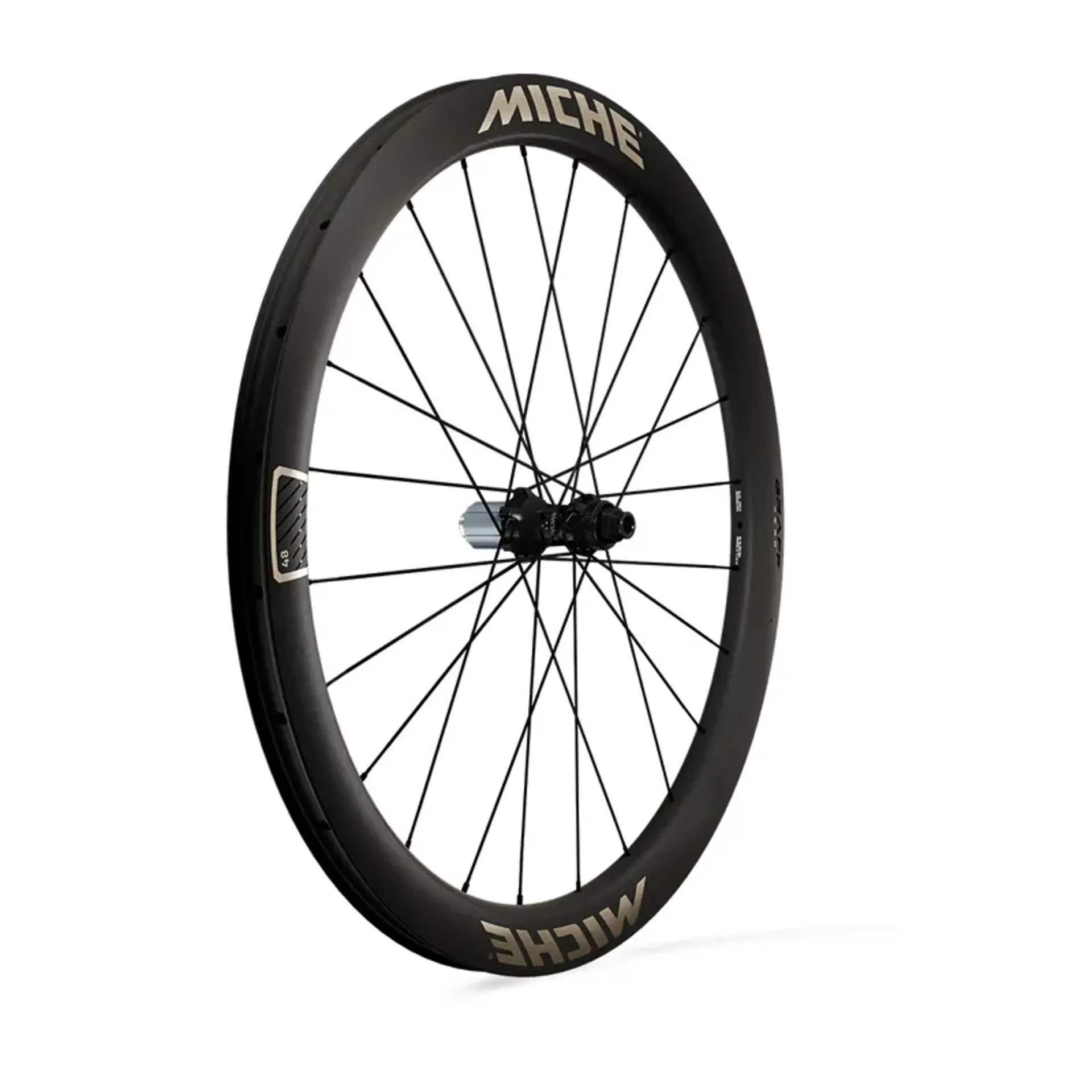

Miche Graff Aero 48 Disc Wheelset in Black

Brand:Miche

Code:16938BLK

Engineered for elite gravel racing, the Graff Aero 48 wheelset blends aerodynamic finesse with rugged reliability.

Developed in collaboration with gravel specialists, including Traka and Unbound winner Ivar Slik, these wheels are built to dominate across unpredictable terrain, where every watt and every second counts.

The UD carbon rim features a 48mm depth and a 27mm internal width with a TSS hookless profile, made specifically for tubeless-ready tyres ranging from 35mm to 60mm. An optimised rim shape, paired with double-butted aero spokes, offers superior aerodynamic efficiency and ride stability, even at high speeds and on rough terrain.

Features:

  • CX-Graff Hub - CX-Graff hubs are fitted with Miche's high-smoothness bearings for maximum fluidity and long-term durability. The 24-spoke lacing pattern (12+12) is engineered to optimise tension distribution and load absorption, tailored to the needs of competitive gravel racing.
  • Weight: 1525g (tubeless ready + 12g)
  • Compatibility: Campagnolo N3W, Shimano HG - Microspline, SRAM XDR
  • Hubs: AL 7075 T6
  • Rim profile: 48mm
  • Rims: 622 x 25 TSS UD carbon fibre
  • Spokes: Stainless steel black, aero, straight pull, double butted
  • Assembly: 24 - 25 crossing
  • O.L.D: 100 - 142mm
  • Nipple: AL 7075 T6 / black
  • Bearings: Miche 2RS
  • Axles: Front 12mm, Rear 12mm
  • Tubeless ready
  • Max load weight (bike & user): 108kg
  • ASTM level: 2
Technical Information
  • Code
    WHGRA1B
  • ASTM
    2
  • Hubs
    AL 7075 T6
  • Spokes
    Stainless steel black / aero / straight pull / double butted
  • Nipples
    AL 7075 T6 / Black
  • Weight (g)
    1525 g. +/- 3% (Tubeless Ready Kit + 12 g.)
  • Assembly
    24 - 24 / Crossing
  • O.L.D. (mm)
    100 - 142
  • Bearings
    MICHE® 2RS
  • Transmission
    RES 30 Rapid Engagement System
  • Compatibility
    Campagnolo® N3W, Shimano® HG - Microspline, SRAM® XDR
  • Max load, Bike + User (Kg)
    108 Kg
  • Rim profile (mm)
    F 48 - R 48
  • Braking system
    Disc Center Lock
  • Included accessories
    Wheels bag / Instruction manual / Brake rotor lock ring / Hub adapter IS6
  • Rim material
    UD Carbon fibre
  • Freewheel body
    AL 7075 T6 - Steel
  • Rim dimension
    622x25 TSS
  • Tyre dimensions
    35 mm ÷ 60 mm
  • Tyre type
    Tubeless
  • Front axle (mm)
    12
  • Rear axle (mm)
    12
